ANENG GN703 Smart Tweezers LCR Meter Professional SMD ESR Test Capacitance Resistance Inductance Digital LCR Bridge Calibration

ANENG GN703 Smart Tweezers LCR Meter Professional SMD ESR Test Capacitance Resistance Inductance Digital LCR Bridge Calibration

$64.89 USD
$71.26 USD $64.89 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
Color
Ships From

SPECIFICATIONS

AC Voltage: /

Battery Included: Yes

Brand Name: ANENG

Certification: CE

DC Voltage: /

DIY Supplies: Electrical

Data Record: No

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Measuring Capacitance Range: 1pF~22mF

Measuring Inductance Range: 1uH~10H

Measuring Resistance Range: 10mΩ~10MΩ

Model Number: ANENG GN703 LCR Bridge Tweezers tester

Operating Mode: Auto Range

Origin: Mainland China

Semi-finishedproduct: No



ANENG GN703 Smart LCR Tweezers SMD ESR Tester for Electronic Components Digital Capacitance Resistance Inductance Meter with Calibration


🔥Product Introduction:


The ANENG GN703 is a professional-grade digital LCR (Inductance, Capacitance, Resistance) meter designed for high-precision electronic component testing. It supports multiple test frequencies (100Hz/1kHz/10kHz) and provides accurate measurements for resistors, capacitors, and inductors across wide ranges. With features like data hold, calibration, USB direct charging, and a user-friendly bilingual interface, it is an essential tool for electricians, technicians, and DIY enthusiasts.



✅Professional LCR Tester ：

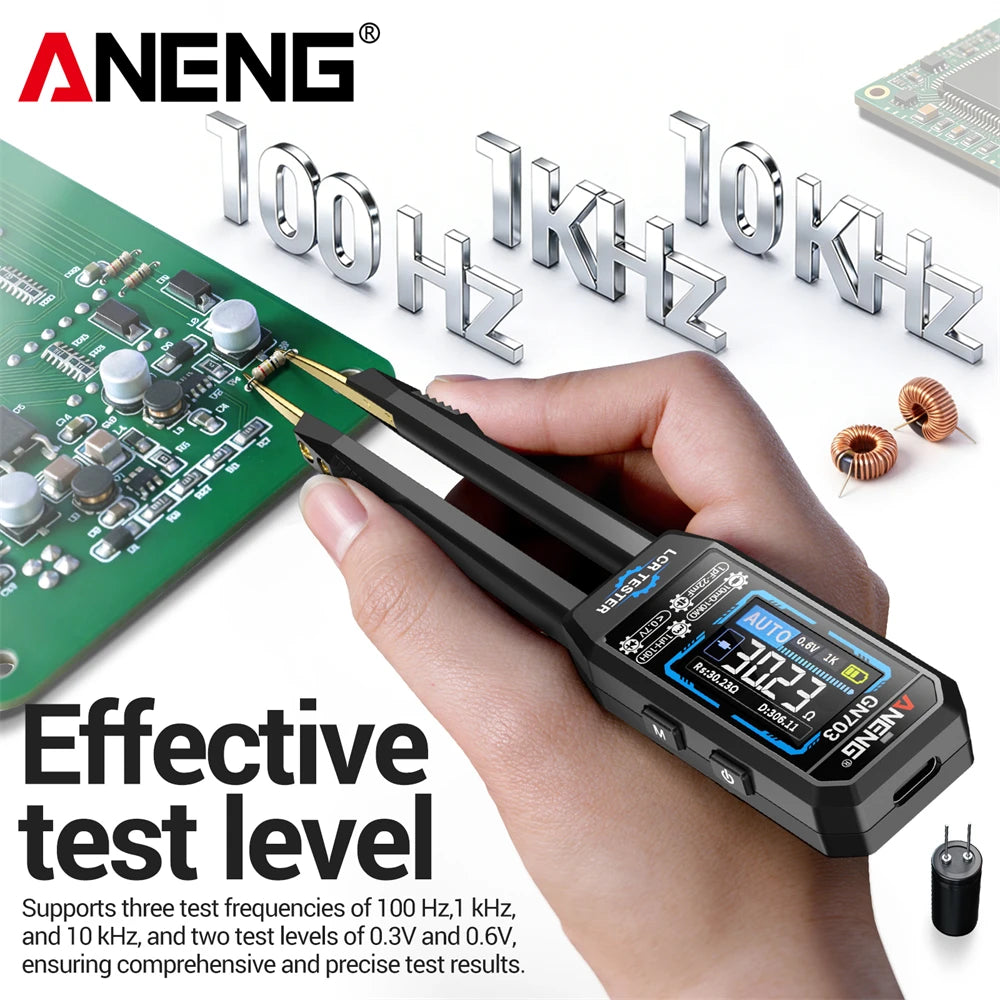

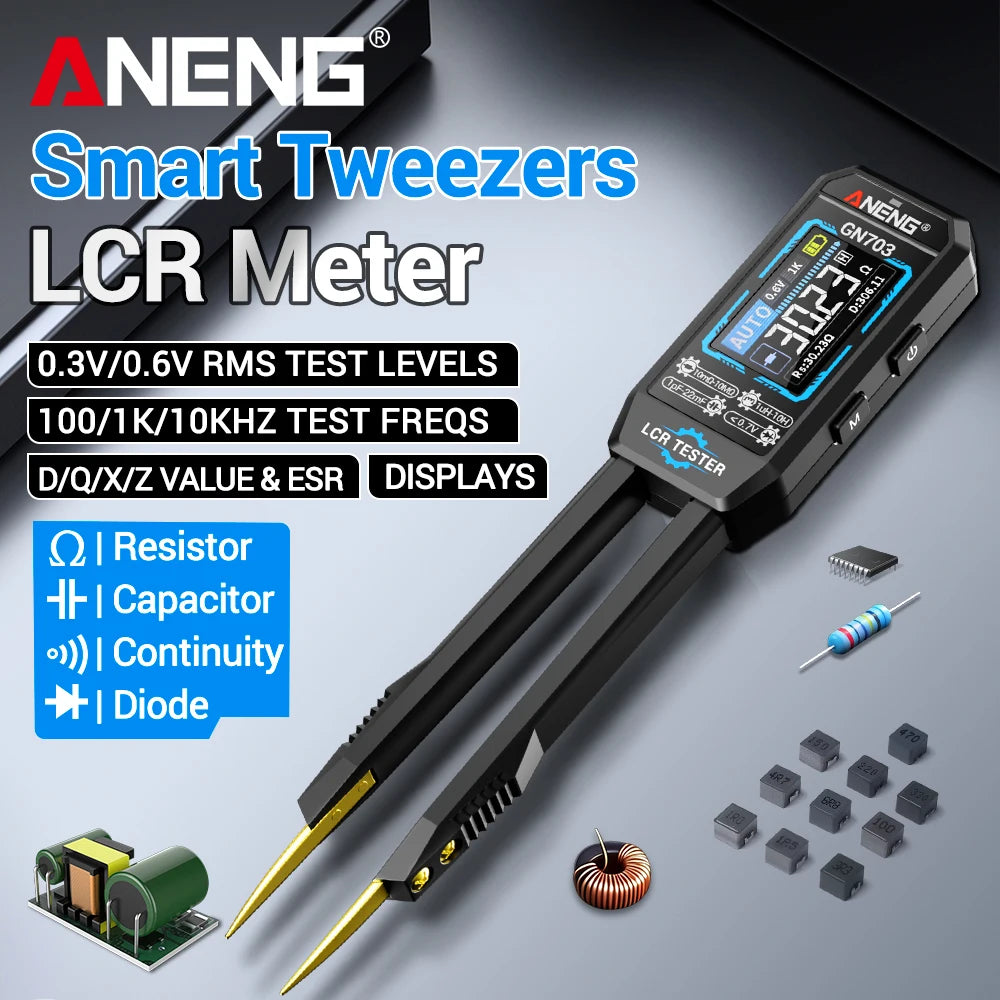

ANENG GN703 smart tweezers LCR meter accurately measures resistance (10mΩ~10MΩ), capacitance (1pF~22mF) and inductance (1uH~10H) with 3 test frequencies (100Hz/1KHz/10KHz), perfect for all SMD components.


✅Tweezers Design for SMD Testing：

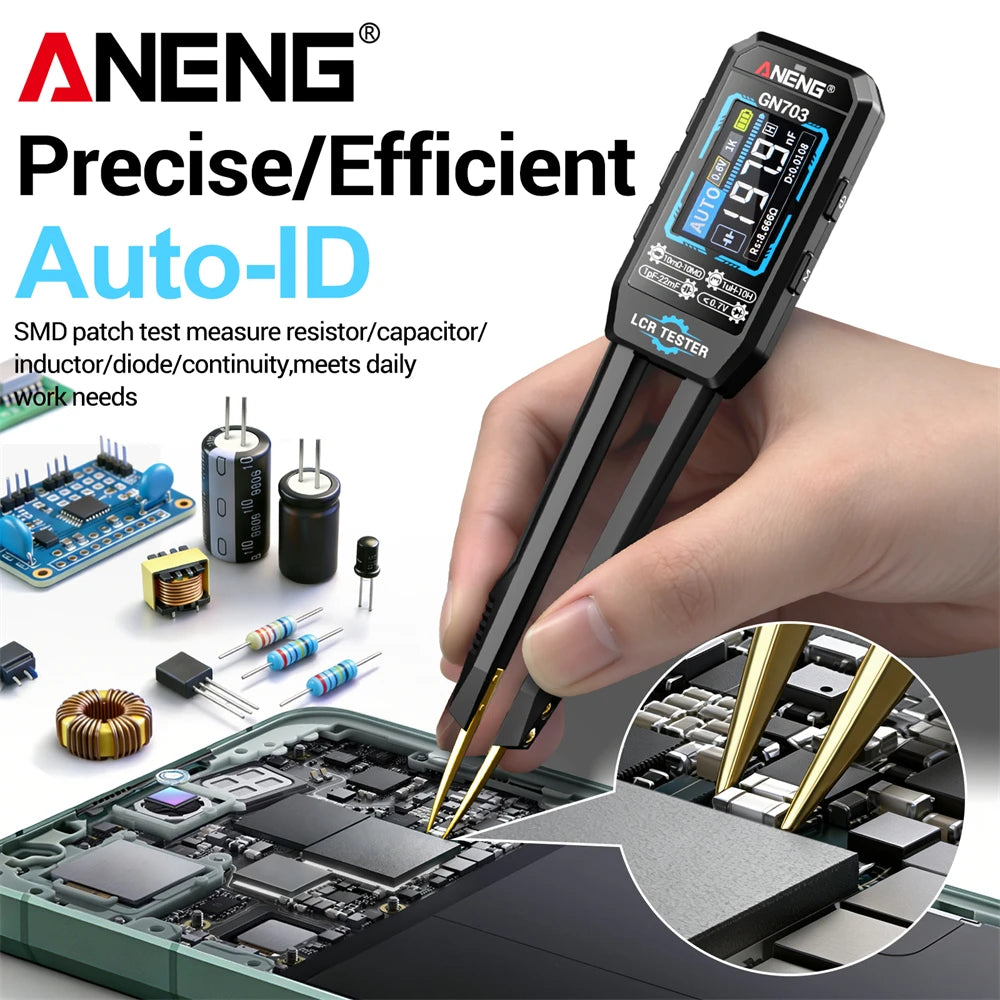

Integrated tweezers probe enables one-handed operation, no extra probes needed. Easily clip and test SMD chips, ideal for electronic repair, DIY and engineering projects.


✅High Accuracy & Calibration ：
Up to 0.5% measurement accuracy with professional calibration function, ensuring reliable and stable test results, comparable to desktop LCR bridges.


✅Portable & Rechargeable ：

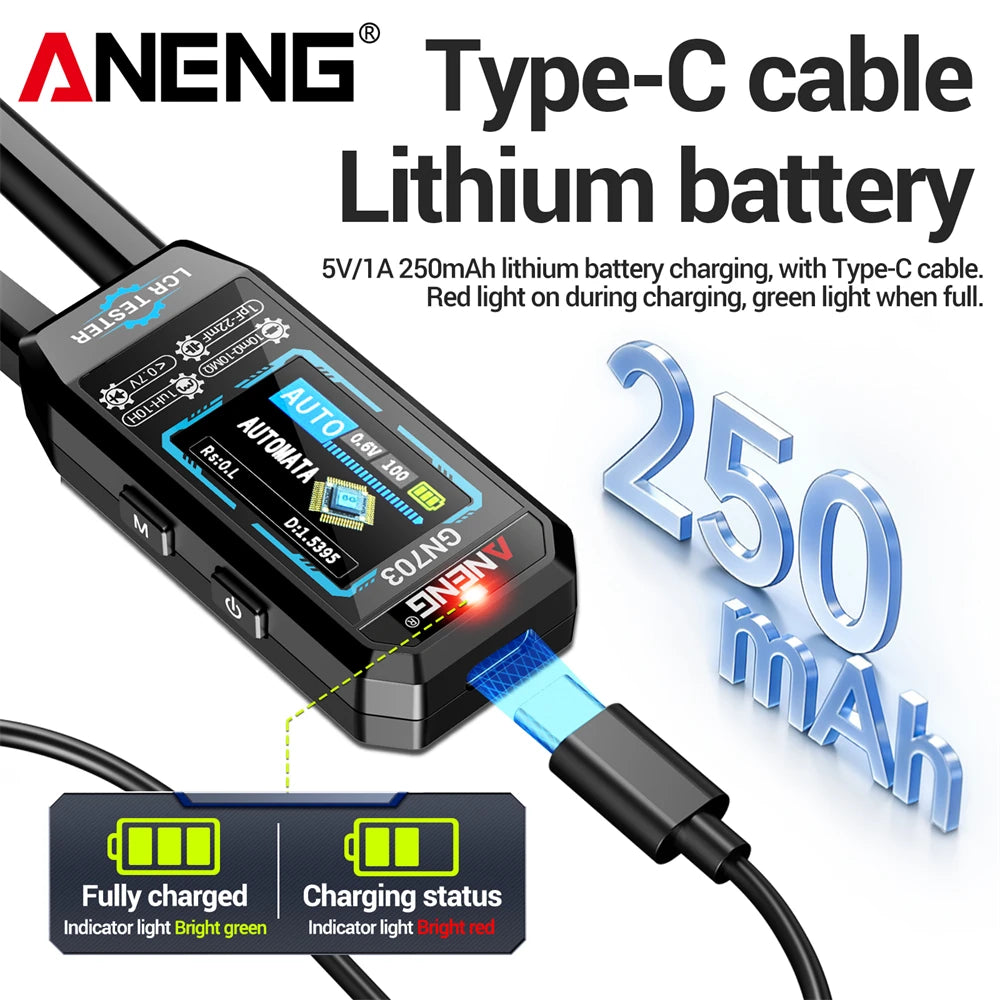

Ultra-light 50g design fits in your pocket, 250mAh rechargeable lithium battery with USB 5V/1A charging. Auto shutdown function saves power for long-time use.


✅User-Friendly Features ：

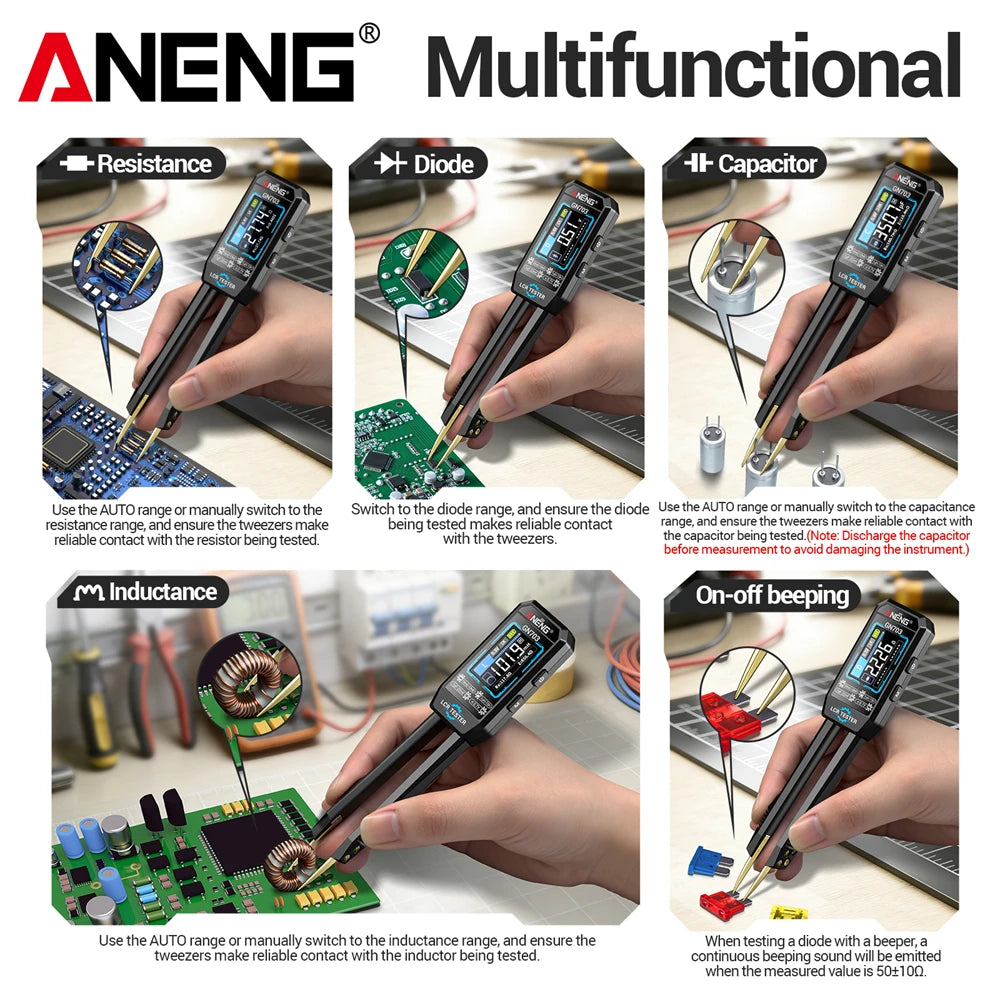

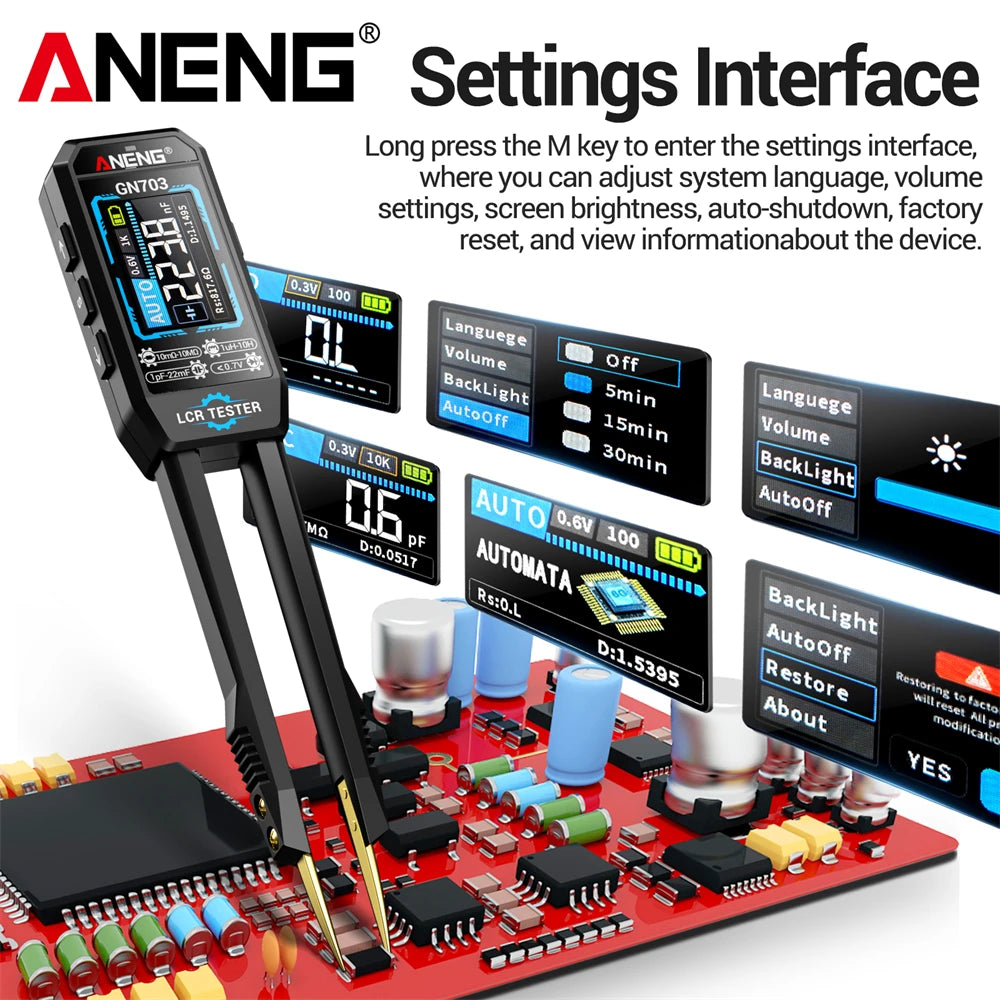

0-100% screen dimming, 0-5 volume adjustment, data hold, Chinese/English system, diode test, on-off beeping and factory reset, meeting all your testing needs.

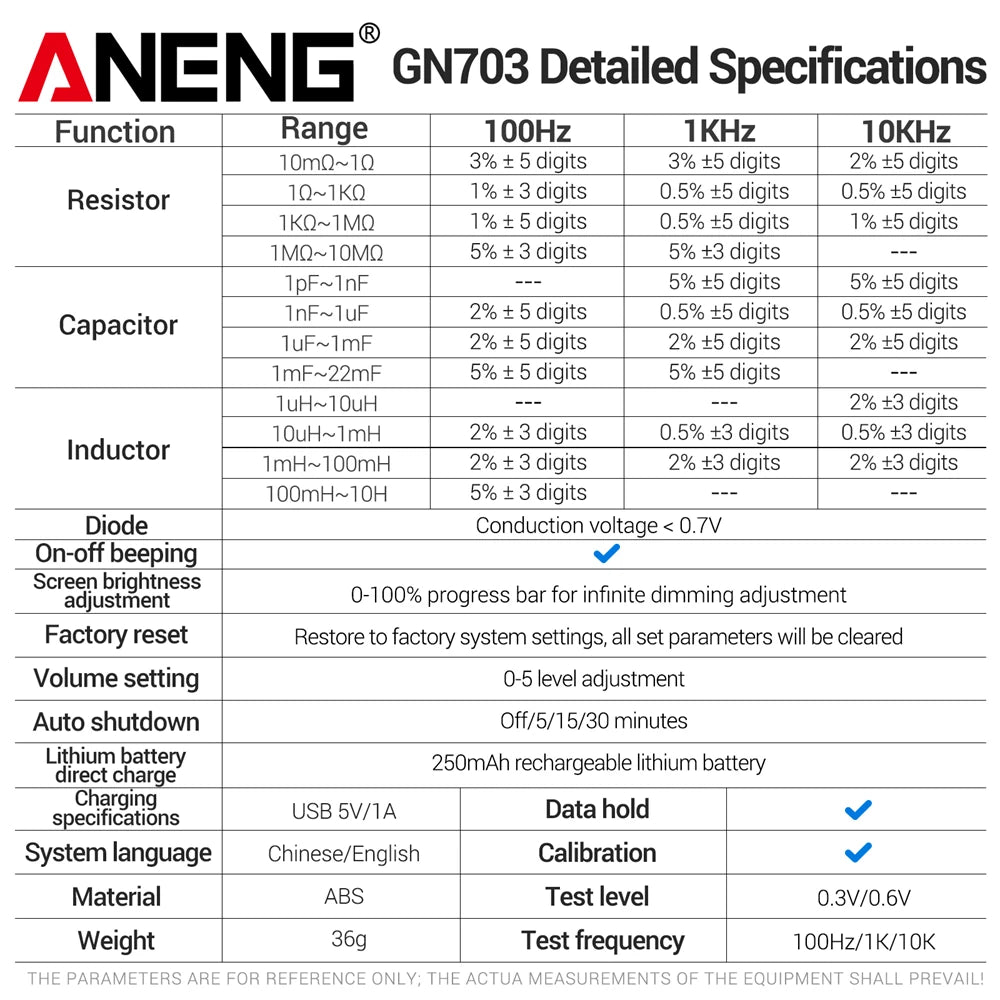

GN703 Technical Specifications

Function

Range

100Hz

1KHz

10KHz

Resistance

10mΩ~1Ω

3%±5dig

3%±5dig

2%±5dig

1Ω~1KΩ

1%+3dig

0.5%±5dig

0.5%±5dig

1KΩ~1MΩ

1%±5dig

0.5%±5dig

1%±5dig

1MΩ~10MΩ

5%±3dig

5%±3dig


Capacitance

1pF~1nF


5%±5dig

5%±5dig

1nF~1uF

2%±5dig

0.5%±5dig

0.5%±5dig

1uF~1mF

2%±5dig

2%±5dig

2%±5dig

1mF~22mF

5%±5dig

5%±5dig


Inductance

1uH~10uH



2%±3dig

10uH~1mH

2%±3dig

0.5%±3dig

0.5%±3dig

1mH~100mH

2%±3dig

2%±3dig

2%±3dig

100mH~10H

5%±3dig



Diode

On Voltage< 0.7V

Continuity

√

Brightness

0~100 Stepless Dimming

Reset

Factory Reset,Clear All Params

Volume

0~5 Gear Adjust

Auto off

Off/5/15/30min

Li-ion chg

250mAh Li-ion Rechg

Charge spec

USB 5V/1A

Data Hold

√

Language

Chinese/English

Calibration

√

Material

ABS

Test level

0.3V/0.6V



Test freq

        100Hz/1KHz/10KHz

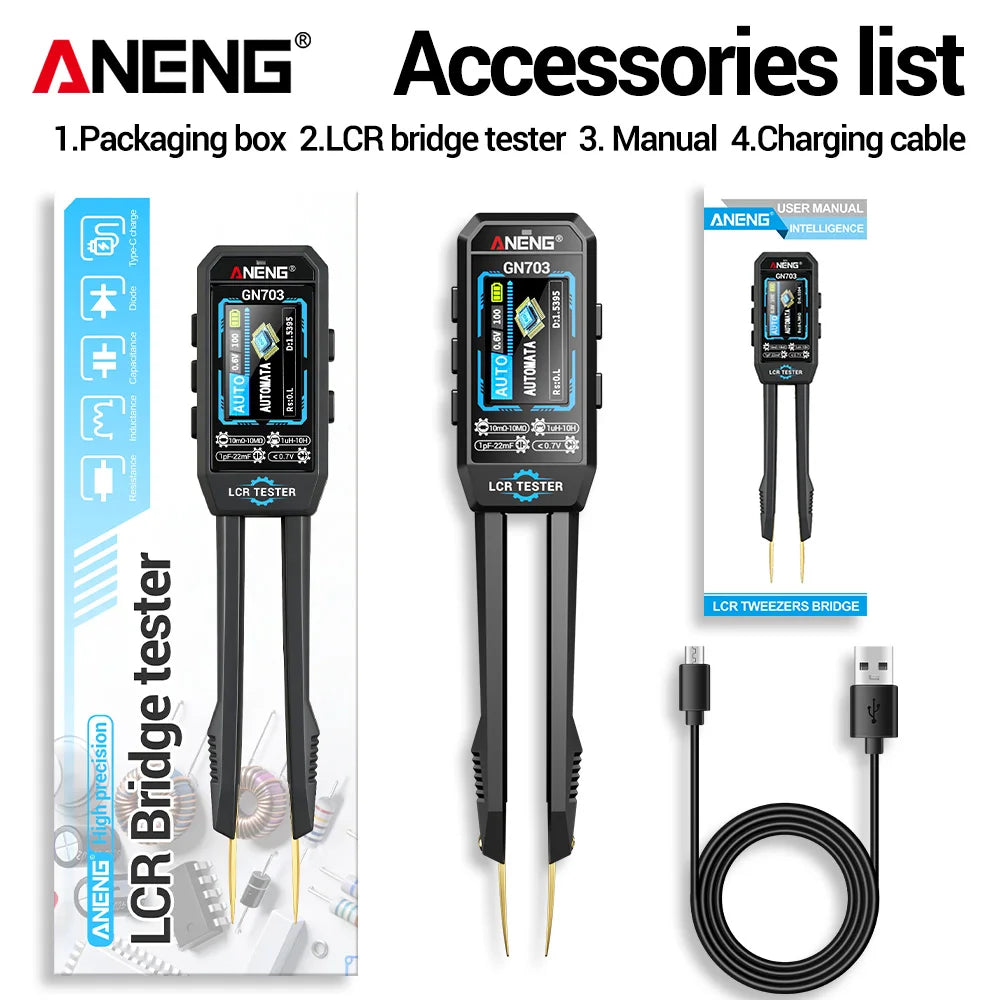

Packing List:

1 * Packaging box

1 * LCR bridge tester

1 * Manual

1 * Charging cable


Safety Precautions

To avoid possible electric shock, fire, and personal injury, please read the safety precautions before use:

1) Do not measure voltage to avoid damaging instruments and personal injury.

2) Do not use the instrument in flammable, explosive, or high-temperature environments, and do not input voltage.

3) Do not use this product around explosive gases and vapors or in humid environments.

4) Waste batteries and scrapped instruments used for instrument replacement cannot be disposed of together with household waste.Please handle them in accordance with relevant national or local laws and regulations.
